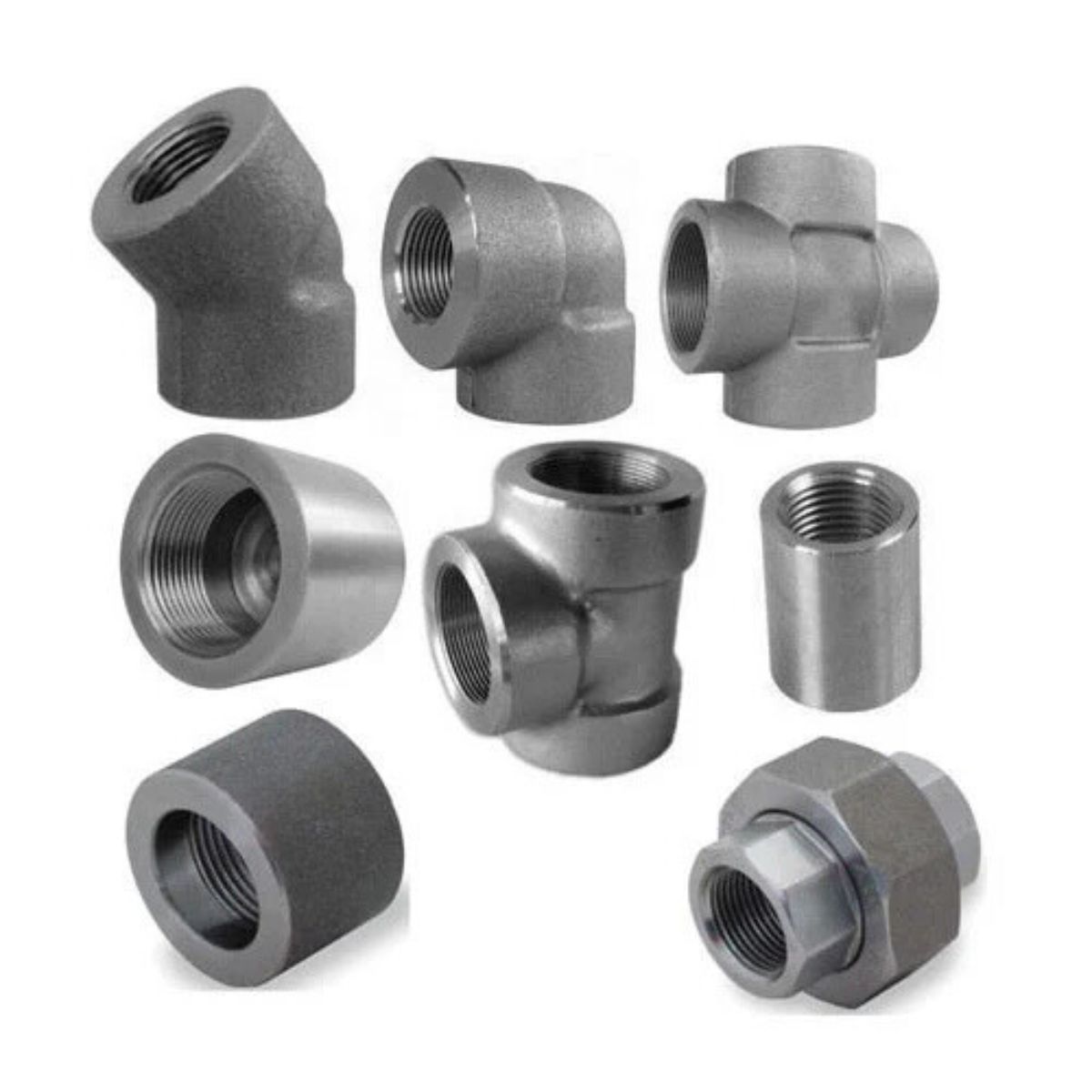

Forge Fittings

Forge Fittings

Forge Fittings

    Specification Table

    Technical Details

    Material Grades

    Available Grades

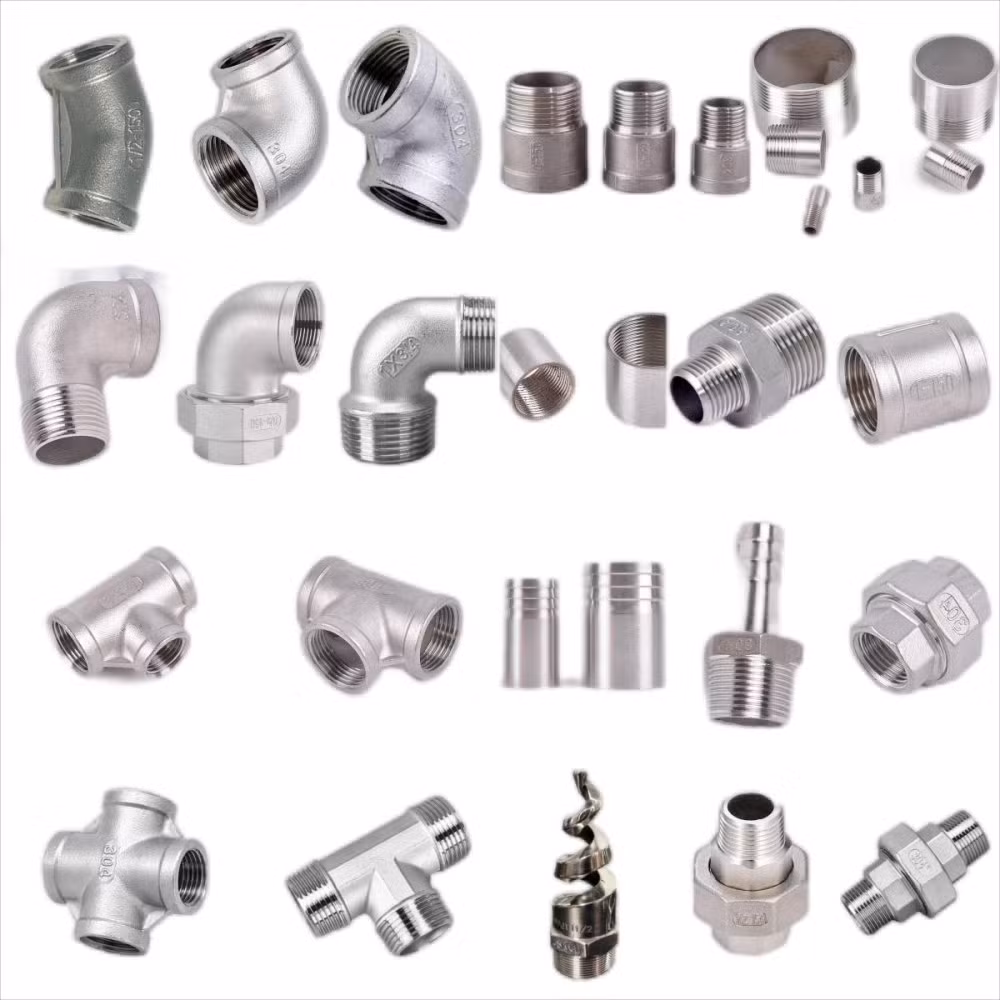

    Stainless & Duplex Steel Fittings

    Stainless & Duplex Steel Fittings
    Range 15 NB to 100 NB
    Pressure Rating 150, 250, 2000, 3000, 6000, 9000 LBS
    Form Socket Weld Fittings:
    Elbow 90°, Elbow 45°, Cross, Tee,
    Coupling, Half Coupling, End Cap
    Stainless Steel ASTM / ASME SA 182:
    F304, 304L, 304H, 309H, 310H, 316, 316H,
    316L, 316LN, 317, 317L, 321, 321H, 347, 347H
    Duplex Steel ASTM / ASME SA 182:
    F44, F45, F51, F53, F55, F60, F61

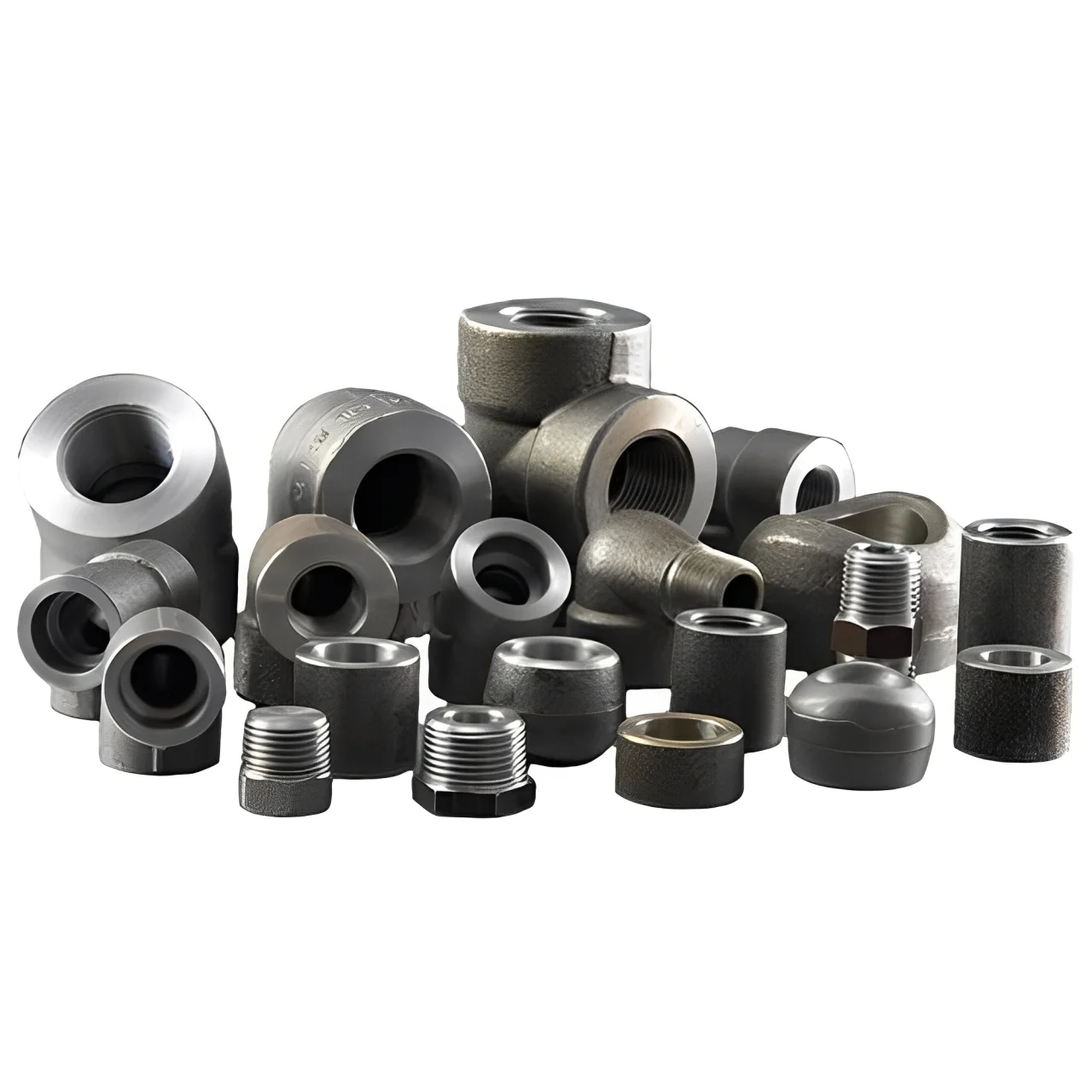

    Carbon & Alloy Steel Fittings

    Carbon & Alloy Steel Fittings
    Range 15 NB to 100 NB
    Pressure Rating 150, 250, 2000, 3000, 6000, 9000 LBS
    Form Socket Weld Fittings:
    Elbow 90°, Elbow 45°, Cross, Tee,
    Coupling, Half Coupling, End Cap
    Carbon Steel ASTM / ASME A105, A350 LF2
    Alloy Steel ASTM / ASME A182:
    F5, F9, F11, F12, F22, F91

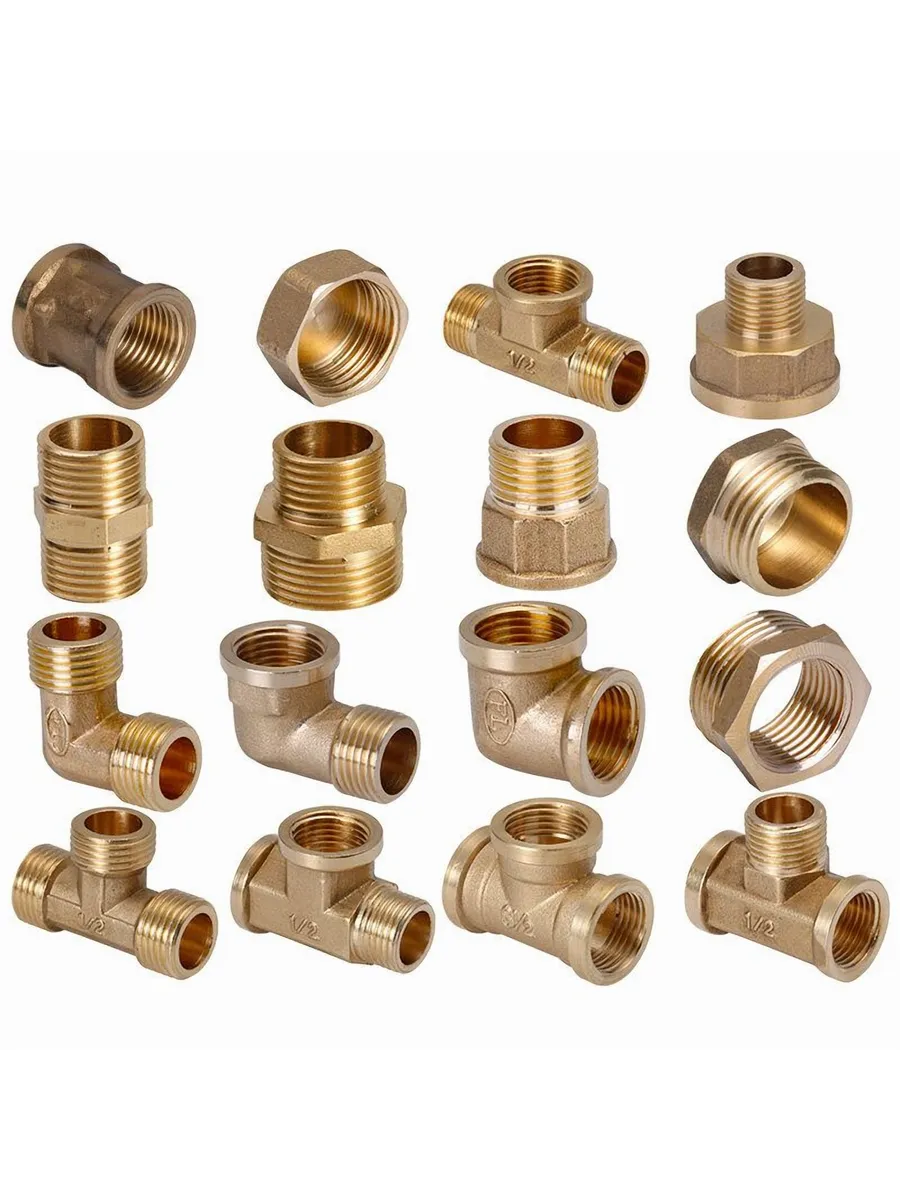

    Nickel & Copper Alloy Fittings

    Nickel & Copper Alloy Fittings
    Range 15 NB to 100 NB
    Pressure Rating 150, 250, 2000, 3000, 6000, 9000 LBS
    Form Socket Weld Fittings:
    Elbow 90°, Elbow 45°, Cross, Tee,
    Coupling, Half Coupling, End Cap
    Nickel Alloy SB 564: Nickel 200, Monel 400, Inconel 825, 600, 601, 625, Hastelloy C-276
    SB 160: Nickel 201
    SB 472: Alloy 20 (20 CB 3)
    Copper Alloy SB 61/62: C92200, C83600
    SB 151: Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
    SB 152: C10100, C10200, C10300, C10800, C12000, C12200

    Inconel

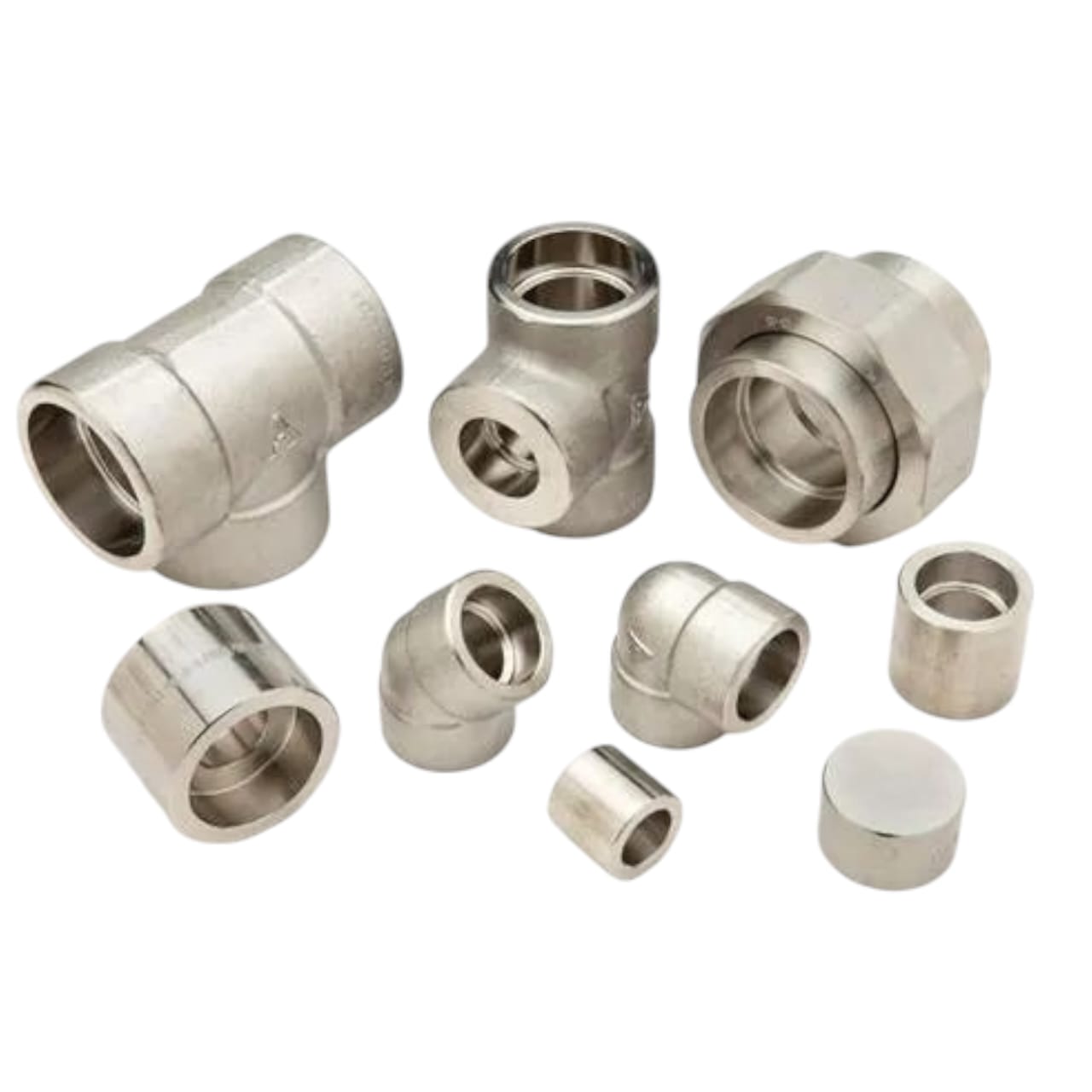

    Inconel Fittings
    Standard ASTM / ASME SB 564
    Grades Inconel 600, 601, 625, 625LCF, 686, 718, 800, 825, X-750
    Types Standard Fittings: Elbows, Tees, Reducers, Couplings, Caps, Cross, Unions, Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals.
    Branch Connections: Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets.

    Monel

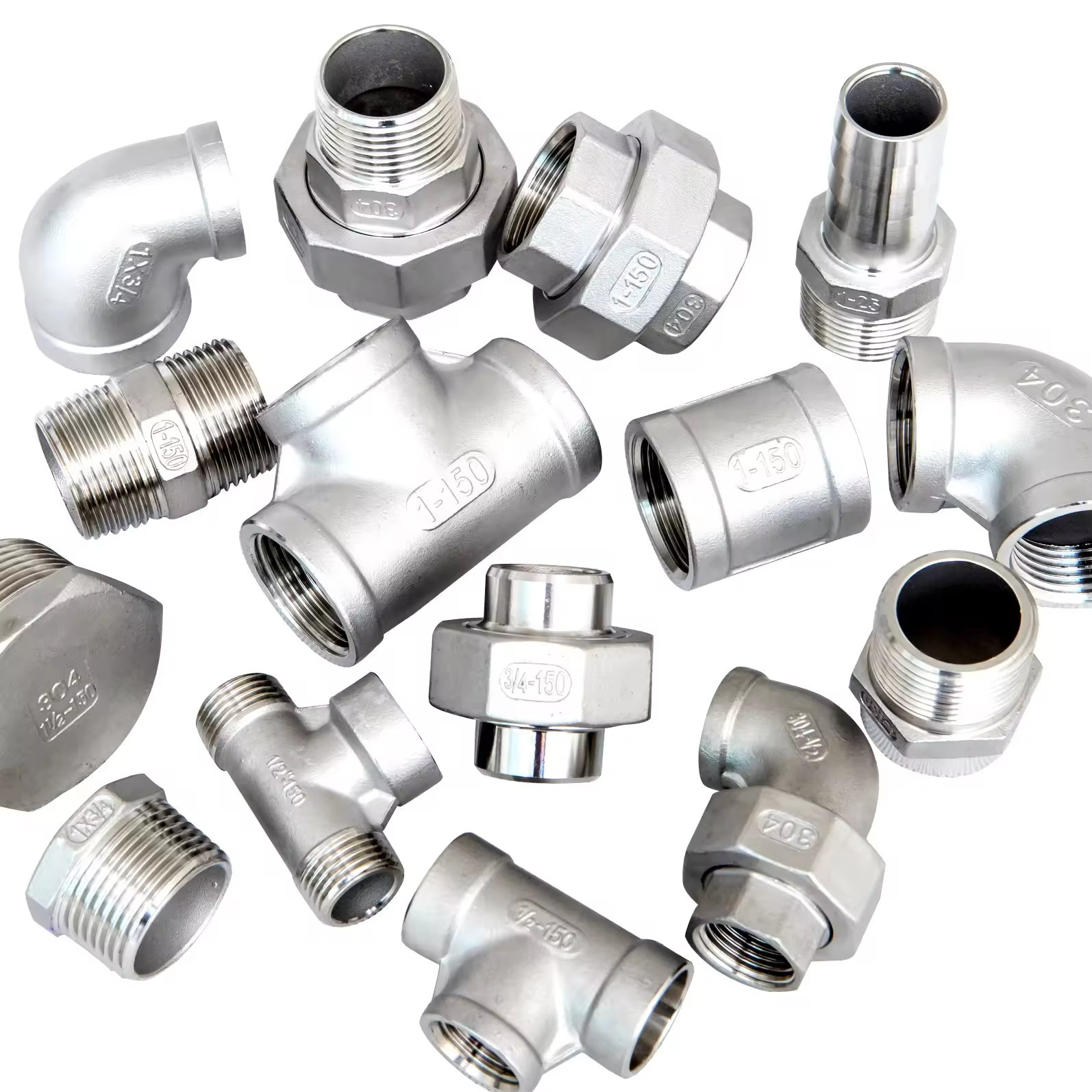

    Monel Fittings
    Grades Monel 400, Monel K500
    Standard ASTM / ASME SB 164 / 165
    Types Standard Fittings: Elbows (90°, 45°, 180°), Equal/Unequal Tees, Concentric/Eccentric Reducers, Couplings, Caps, Cross, Unions, Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals, Street Elbows.
    Branch Connections: Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets.

    Titanium

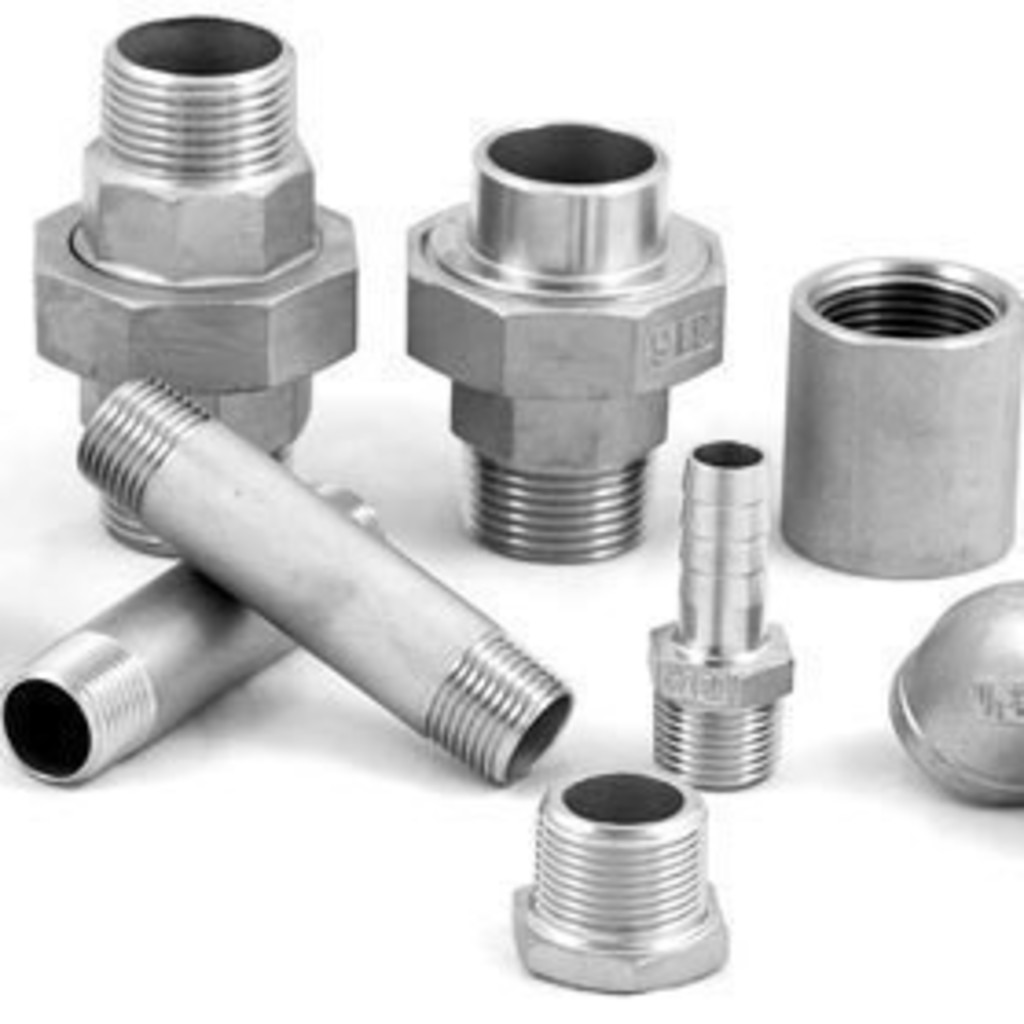

    Titanium Fittings
    Standard ASTM / ASME SB 381
    Types Standard Fittings: Union, Coupling (Full/Half), Cross, Forged Elbow (90°/45°), Hex Nipple, Plug, Bushing, Boss, Insert, Adapter, Socket, Forged Tee, Nipple (Barrel).
    Branch Connections (Olets): Weldolet, Sockolet, Elbowlet, Thredolet, Nipolet, Latrolet, Sweepolet.

    Tantalum

    Tantalum Fittings
    Material Titanium Gr1, Gr2, Gr5, etc.
    Products Elbow, Tee, Stud End, Reducer
    Elbow Type 45° Elbow, 90° Elbow, 180° Elbow
    Tee Type Straight Tee, Reducing Outlet Tee

    Choose A Product Type

    Every card opens the dedicated product type page with image, description, specification table, and dimension chart.

    Where These Products Perform
